KC70 Series

COMPACT AND POWERFUL

Compact, powerful and designed for optimum comfort and fuel efficiency, Kubota KC70-4 track dumpers make it easy to transport up to 700kg of materials. Five diesel or petrol variants are available include the standard model (KC70H-4), a variable undercarriage model (KC70HV-4), a high dump version (KC70HD-4), a version with a self-loading shovel (KC70SL-4), and a variant that includes both a variable undercarriage and a self-loading shovel (KC70VSL-4).

In addition, electric versions are available including a standard KC70H-4e and self loading KC70VSL-4e.

Key Features

  • Kubota Diesel air-cooled petrol Kubota engines
  • Electric 48v 120A lithium battery technology / 3hrs full charge/electric powered tracks
  • 700kg maximum payload
  • Up to 0.34m3 skip capacity
  • 86 degree discharge angle
  • 1430mm tipping height
  • Max. forward reach 447mm
  • Hydraulic transmission
  • Max speed 2.2-3.8 km/h
  • 2 shift speed lever control
  • Fixed/variable undercarriage 758mm to 1058mm

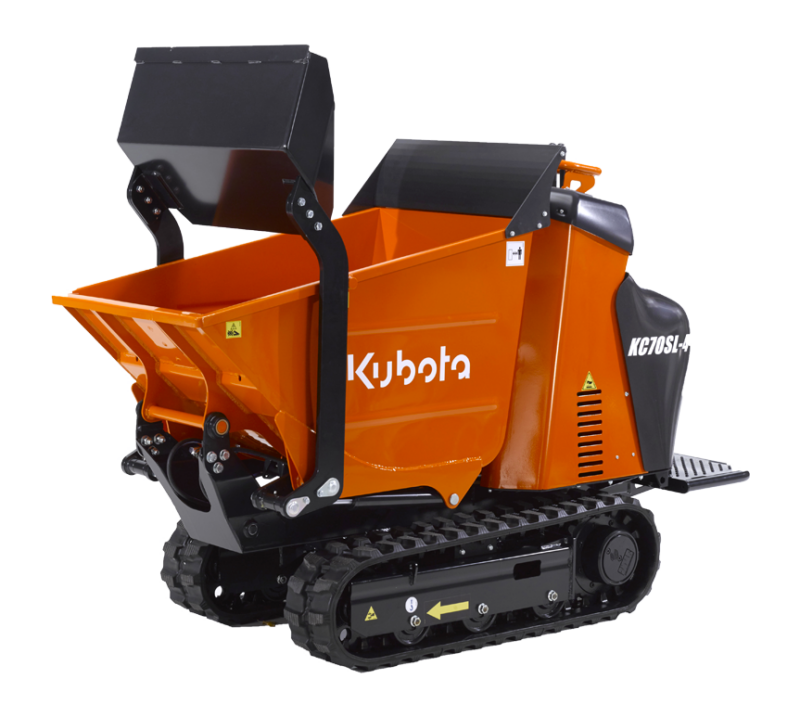

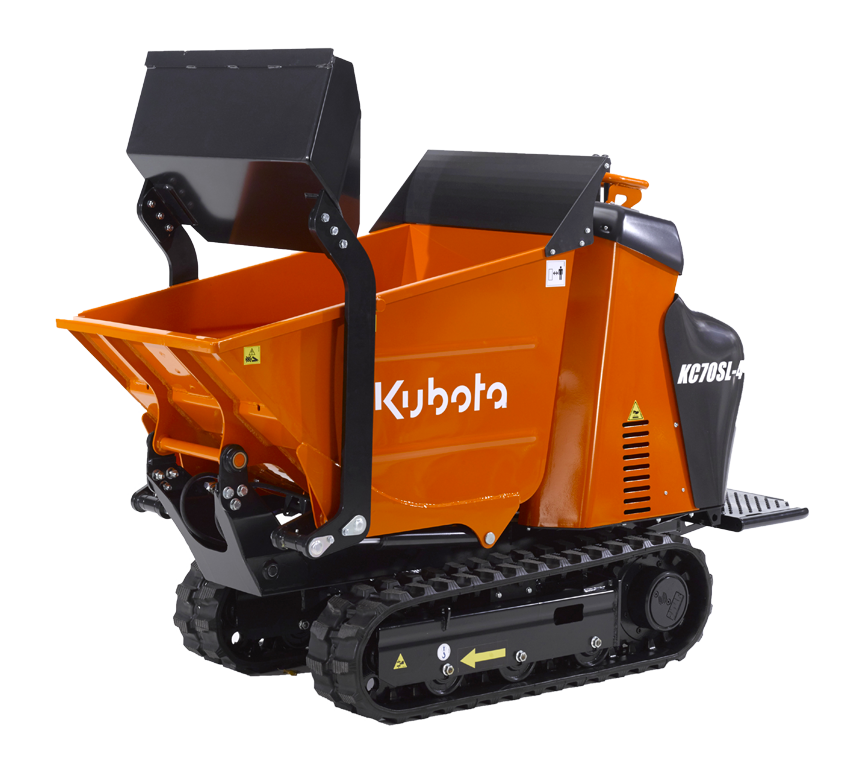

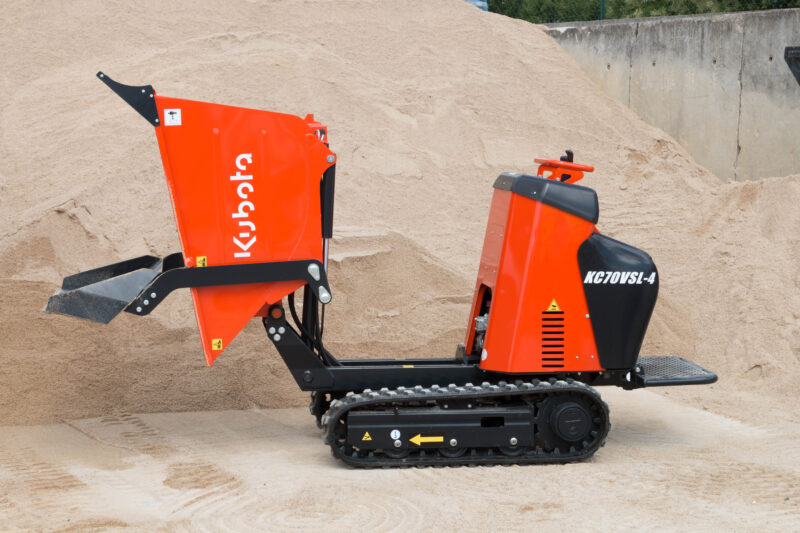

  • Self-loading variants activated by two hydraulic cylinders

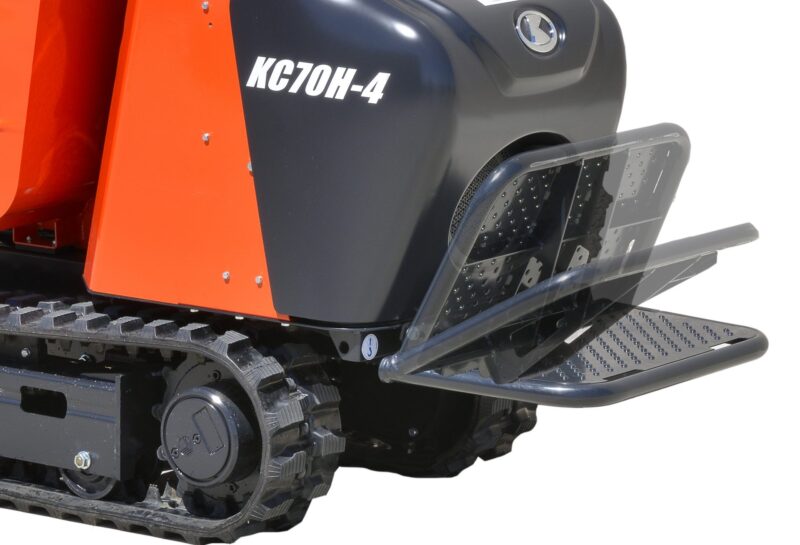

  • Foldable footplate
  • 8 degree tip angle audio warning
