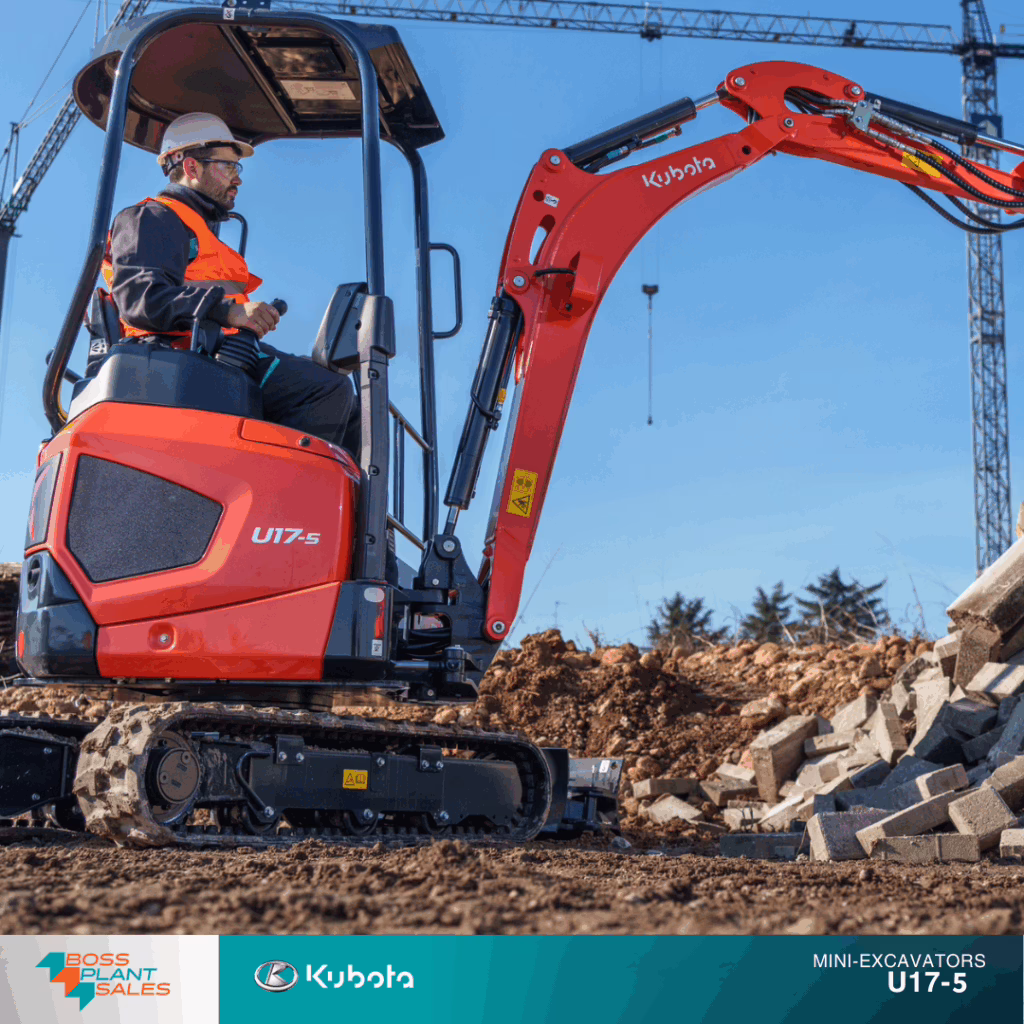

Kubota U17-5 Mini Excavator – Next-Level Comfort, Performance & Efficiency.

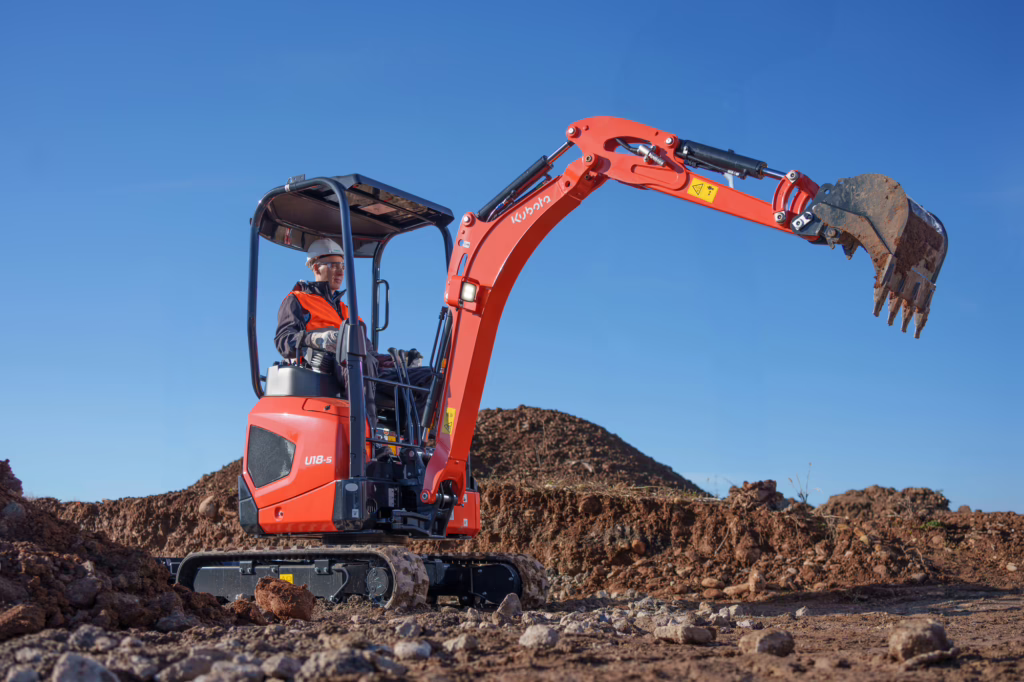

| Model | U17-5 | U18-5 |
| Machine Weight (kg) | 1705 | 1760 |
| Power (ISO 14396:2002) (kW (PS) / rpm) | 11,8 (16,0) / 2300 | 11,8 (16,0) / 2300 |
| Max Speed (km/h) low/high | 2,3 / 4,4 | 2,3 / 4,4 |
| Max Dig Depth (mm) | 2290 | 2440 |
| Max Reach (mm) | 3880 | 4010 |
| Max Digging force Arm/Bucket (kN) | 8.4 / 14.7 | 7.7 / 14.7 |
| Aux Flow 1 & 2 | 10,4 l/min @ 186 kgf/cm² | 10,4 l/min @ 186 kgf/cm² |
| Overall width (mm) | 990 / 1300 | 990 / 1300 |
| Overall height (mm) | 2370 | 2370 |
| Transport length (mm) | 3550 | 3550 |
Fuel-Saving Auto Idling System
Boost efficiency and cut fuel costs with Kubota’s Auto Idling System:
- Automatically reduces engine RPM after 4 seconds of inactivity
- Instantly returns to full power when controls are engaged
This smart feature helps reduce noise, lower emissions, and extend engine life.
Automatic Shift for Smoother Operation
The auto-shift system automatically switches between high and low travel speeds based on terrain and load:
- Enhanced traction and smoother turns
- Ideal for dozing and navigating rough ground
It’s one less thing to think about – just focus on the task ahead.
All-New Kubota U17-5 – Built for Maximum Productivity
The Kubota U17-5 mini excavator raises the bar for compact construction equipment. Renowned for its outstanding performance and durability, the U17-5 has been redesigned to deliver even higher productivity, greater comfort, and improved fuel efficiency. Whether you’re working in tight urban spaces or on larger construction sites, the U17-5 mini digger is engineered to get the job done faster and with less effort.
EU Stage V Emissions Compliant
The Kubota U17-5 meets the latest EU Stage V emissions standards, offering an eco-friendly solution that doesn’t compromise on power or performance.
Enhanced Operator Comfort and Ergonomics
A productive operator is a comfortable one. The Kubota U17-5 excavator features a redesigned operator station for superior comfort and efficiency:
- Ergonomically placed controls for intuitive handling
- Easy-to-read front meter panel to stay focused on your work
- Built-in mobile phone holder with charging port
With a focus on operator comfort, Kubota helps reduce fatigue on long working days.
Improved Travelling and Digging Performance
Experience smoother, uninterrupted movement thanks to the travel-independent hydraulic system, allowing you to operate the boom, arm, bucket, and auxiliary functions without sacrificing travel speed or stability.
Variable Track Gauge for Versatile Site Access
The U17-5’s adjustable track width enhances flexibility and stability:
- Expandable track gauge up to 1,300 mm for improved balance with heavy attachments
- Retractable to 990 mm for navigating narrow spaces and doorways
Perfect for tight-access jobs while still offering solid ground performance.
Quick and Easy Maintenance Access
Maintenance downtime is productivity lost. The Kubota U17-5 mini digger is designed for:
- Tool-free access to key components including the engine oil dipstick, battery, radiator, and water separator
- Durable steel side covers and bonnet for longevity and easy repairs
Simplified serviceability keeps your machine in peak condition with minimal downtime.
Buy the Kubota U17-5 Mini Excavator Today
Whether you’re a contractor, builder, or equipment rental provider, the Kubota U17-5 is a top-tier choice for compact excavators. For competitive pricing, finance options, and availability, contact us today or browse our full range of mini diggers for sale.
